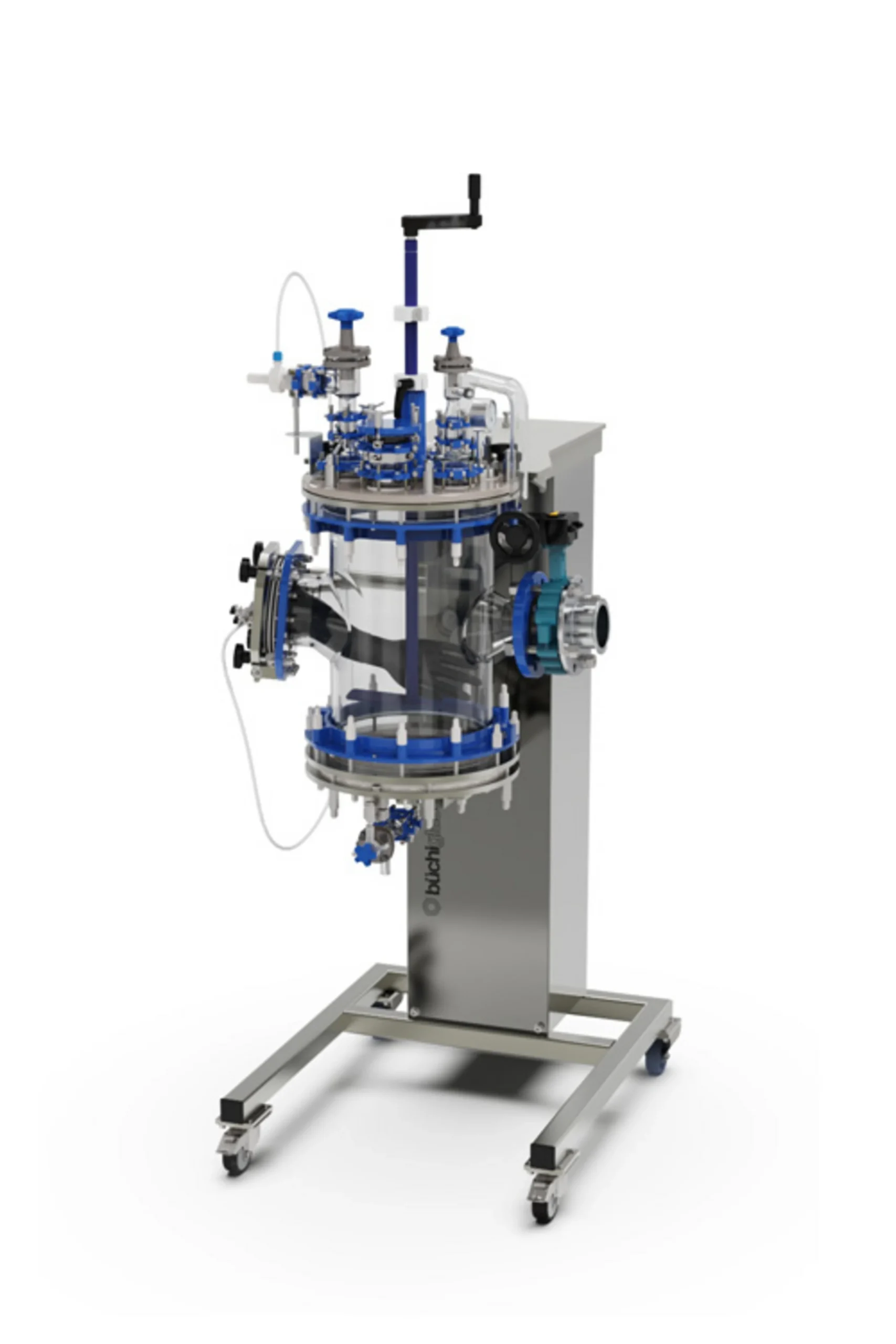

High Containment Filter
Büchiglas High Containment Nutsche Filter is designed for safe and controlled filtration and solid-liquid separation, particularly for processes involving highly potent active pharmaceutical ingredients (HPAPI). The system enables filtration under closed conditions and discharge of the filter cake with minimal operator exposure.
ADVANTAGES
APPLICATIONS
TECHNICAL SPECIFICATIONS
Advantages
- High-containment design for operator and product protection
- Controlled filter cake discharge using an EPDM glove and bag system
- Suitable for handling HPAPI substances
- Filtration under a protective atmosphere
- Filtration vessel can be easily raised, lowered, and tilted
- Robust and compact design
- Easy operation and cleaning
- Can be integrated with other Büchiglas systems, such as gas scrubbers and mixing vessels
Applications
- Filtration and separation
- HPAPI filtration
- Filtration under a protective atmosphere
- Crystallization
- Peptide synthesis
- Ion exchange
- Chromatography
- Purification and separation processes
Technical Specifications
- Filtration vessel volume: 30 L
- Operating pressure: −1.0 bar (full vacuum) to +0.5 bar
- Temperature range: −60 °C to +200 °C
- Glove material: EPDM
- Design: High Containment Nutsche Filter
- Discharge: Closed discharge using a glove and bag system
Product Related
Nutsche Filters
Büchiglas Nutsche Filters are designed for efficient solid-liquid separation in laboratory, pilot plant, and kilo-lab processes. They can be combined…

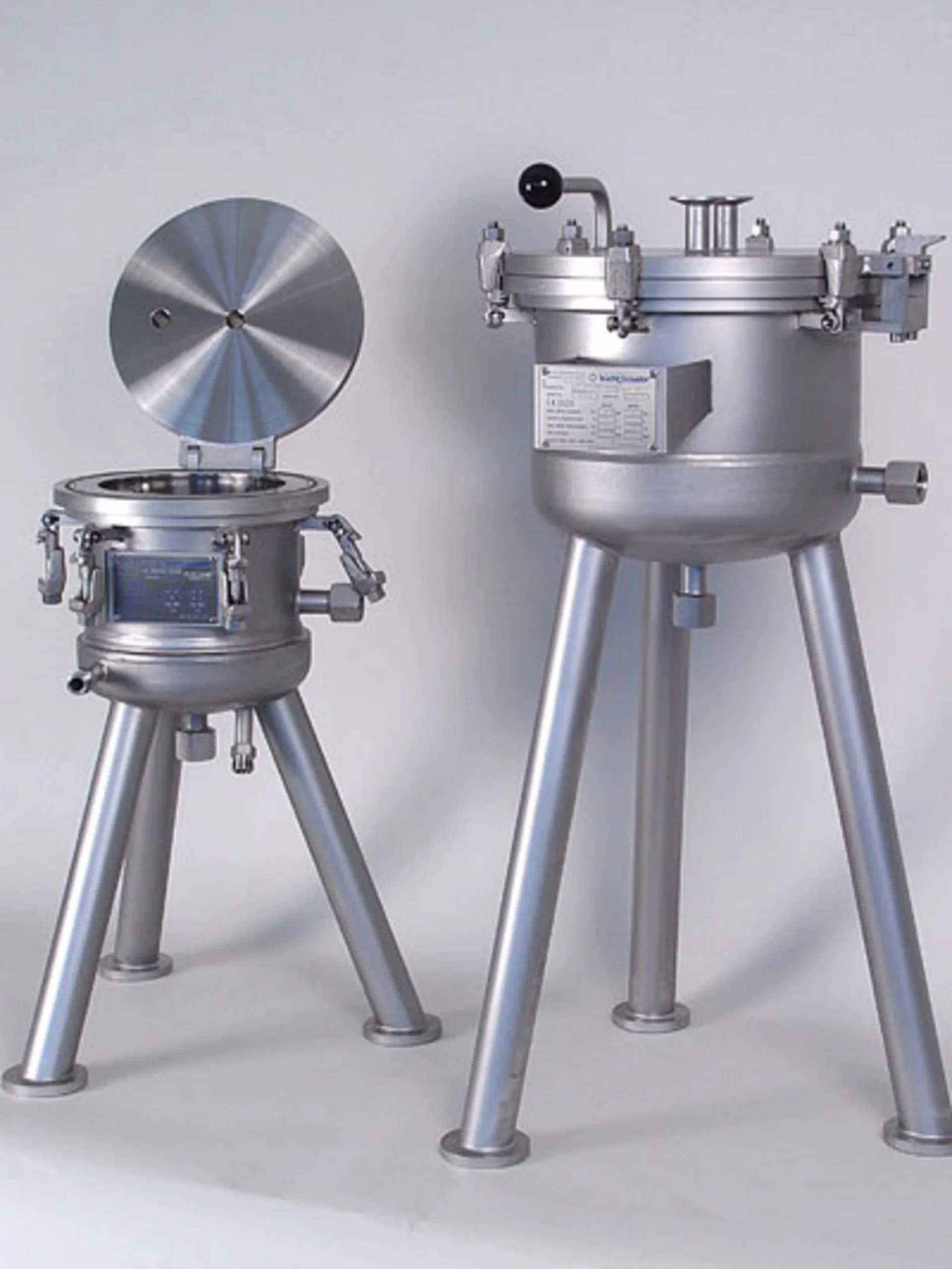

Pressure Nutsche Filters
Büchiglas Pressure Nutsche Filters are designed for efficient filtration and separation in laboratory and pilot-scale processes. Their robust and compact…

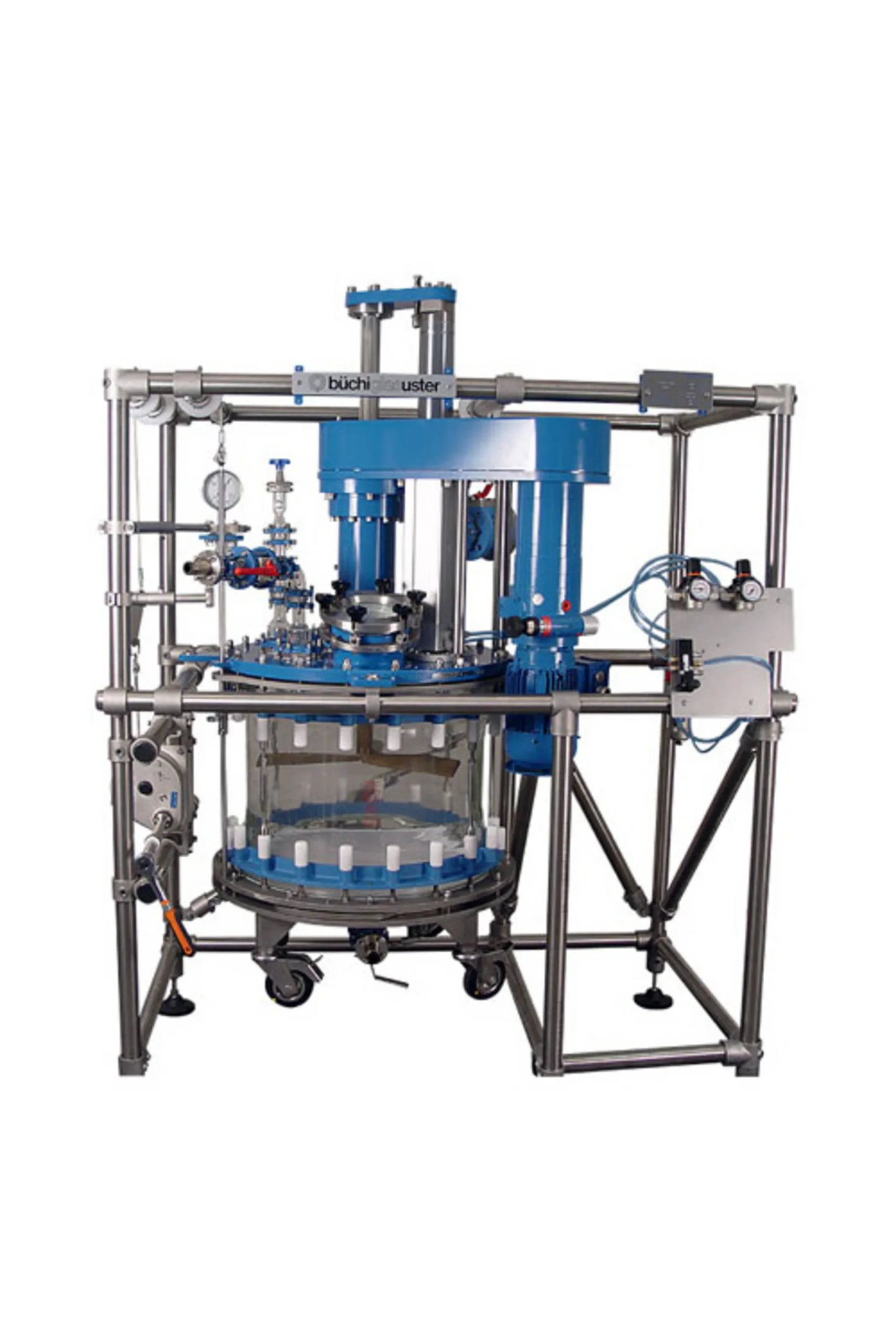

Stirred Nutsche Filters
